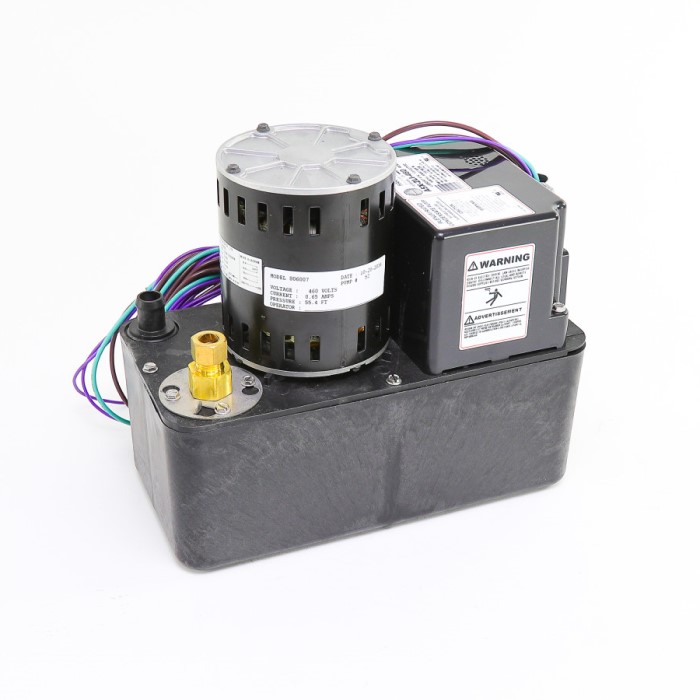

1A19271P2 Liebert Condensate Pump

Overview The Liebert 1A19271P2 is a high-performance 460V condensate removal pump specifically engineered for industrial air conditioning, refrigeration, and precision cooling systems. Designed for reliability in demanding environments, this pump effectively manages condensate water to prevent equipment damage and maintain optimal system performance. It is commonly used with Liebert humidifier, steam generator, and infrared systems, featuring a rugged construction that handles high-temperature water up to 212 degrees Fahrenheit. Features Automatic operation via an integrated float switch that activates based on water levels Durable cast iron pump body and stainless steel impeller for long-term service life High-temperature housing and tank designed to handle boiling water (212 degrees F) Dual-float protection system to shut off the unit and trigger alarm signals during backups Self-priming centrifugal pump technology with a built-in serviceable check valve Thermal overload protector to prevent motor damage during strenuous operation Pre-wired terminal block and connectors for simplified installation into Liebert equipment Galvanized steel cover to protect internal components from environmental contaminants Specifications Manufacturer: Liebert (Vertiv / Emerson) Model Number: 1A19271P2 Voltage: 460V AC, Single Phase, 50/60 Hz Horsepower: 1/2 HP Pumping Capacity: Up to 12 gallons per hour Maximum Flow Rate: 9.6 GPM at 1 foot of head; 6.1 GPM at 40 feet of head Maximum Head: 60 feet (26 psi operating pressure) Tank Capacity: 1 gallon Materials: Cast iron body, stainless steel impeller and shaft, polypropylene tank Dimensions: Approximately 7.1 x 13.9 x 11.4 inches Weight: Approximately 15.4 lbs Connections: 3/4 inch barbed inlet, 1 inch MNPT discharge Applications Condensate removal for Liebert precision cooling units in data centers Industrial-grade air conditioning and refrigeration systems Support for steam generators and infrared humidification systems High-temperature HVAC drainage applications Replacement for OEM part numbers A5X-2LI-460 and Hartell 806051
