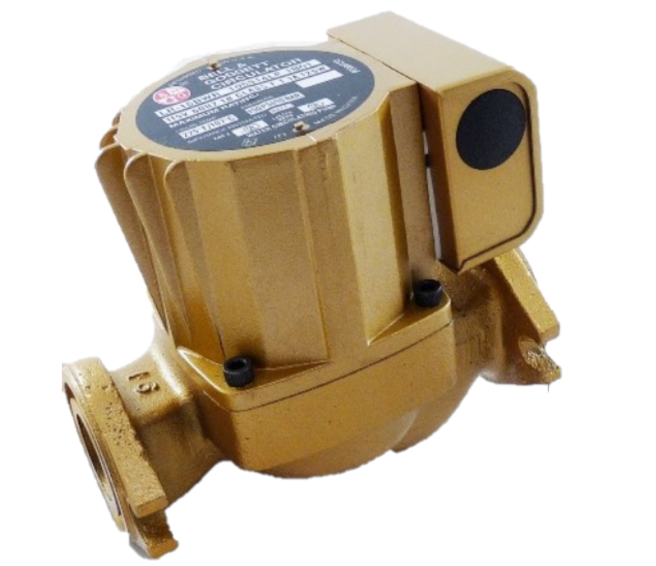

106514LF Bell & Gossett Circulator Pump

The Bell & Gossett (106514) LR15BWR,LittleRedBrz,1/12 HP Tech Sheet Installation Guide The Series LR is a flanged in-line system lubricated circulating pump designed specifically for quiet operation in closed loop systems. The Series LR is available in cast iron body construction for hydronic heating systems or lead-free † bronze body construction for potable water applications. Maintenance-Free circulator. Compact Design. Operating Data:Maximum working pressure . . . . . . . . . . . .150 psi (10 bar)Maximum operating temperature . . . . . . . . 225°F (107°C) Applications:Reliable Circulators for Residential Heating Systems. Pump Flanges (sold seperately)   NPT – 100, LR, PR, NRF (except 45),                              HV, PL-45, PL-50, NRF-45 NBF, SSF, PL-30, PL-36, PL-55   3/4″      101221                                                    1″           101224 1″         101222                                                    1 1/4″      101225 1 1/4″   101223                                                    1 1/2″       101242 1 1/2″   101241   Sweat – 100, LR, PR, NRF (except 45),                              HV, PL-45, PL-50, NRF-45 NBF, SSF, PL-30, PL-36, PL-55   3/4″      101226                                                    1″            101229 1″         101227                                                    1 1/4″      101230 1 1/4″   101228                                                    1 1/2″       101244 1 1/2″   101243
